SmartLogic
The SmartLogic project turns a ZTEX USB-FPGA-Module 1.2 into a flexible smart card research tool that allows complete control over the smart card communication channel for eavesdropping, man-in-the-middle attacks, relaying and card emulation.
References
Introduction
This project uses
- the Power Supply Module for USB-FPGA boards
- the SCUBA smart card project (included in the source)
- a generic smart card reader
- a smart card interface to connect to the pins of the FPGA board

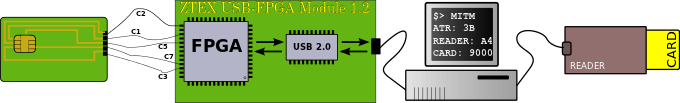

Example Setup

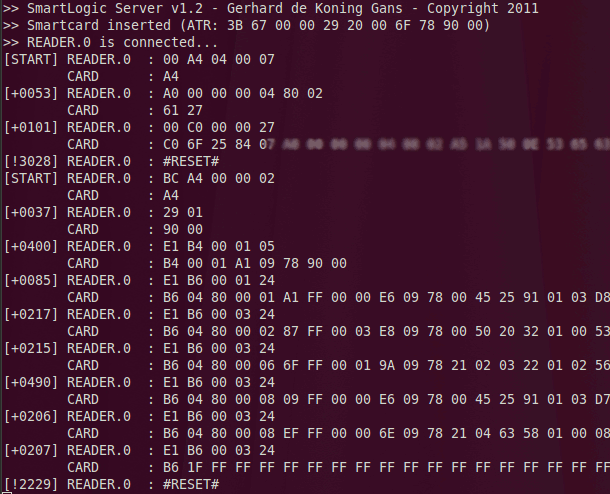

Trace of Card Balance Read Out (Dutch Chipknip)

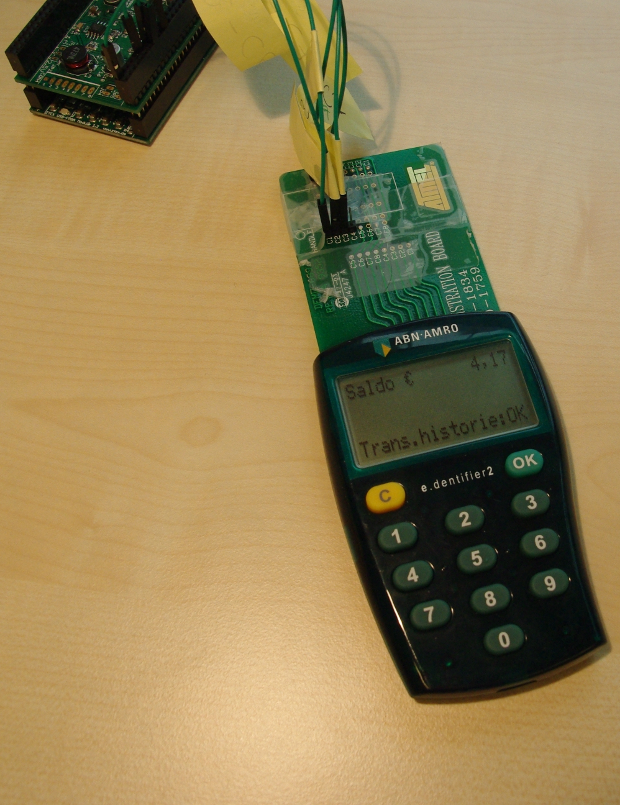

The SmartLogic
The Generic Reader
